Ensure that you have already installed the Domino server software properly on the server hardware where SecurTrac^TM will be installed. Please refer to the HCL Domino Install Guide(Provided by HCL) for complete step-by-step instructions about setting up the Domino server software.

Ensure that the SecurTrac^TM executable will be installed in the SAME directory as the HCL Domino server executable files.

Note that the SecurTrac^TM installation will modify the Domino server Notes.ini file.

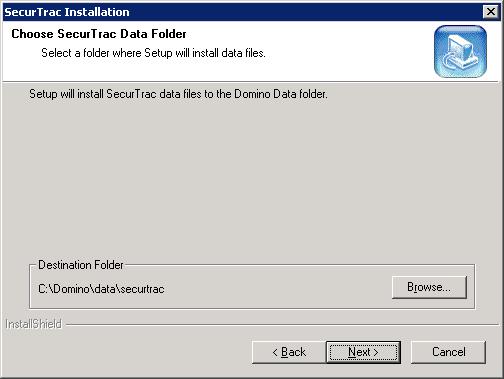

SecurTrac^TM database templates will be copied into a directory called SecurTrac^TM (default name) within the Domino data directory.

Note: As a precaution, ensure that you have a current backup of your Domino Server installation, before proceeding with the installation of SecurTrac^TM.

1. Shut down the Domino server and other Domino partition servers(if any) that are running on the same server hardware.

2. Run the SecurTrac^TM setup program, while logged in as Administrator in Windows.

3. The 'Welcome' screen will appear. Click the "Next" button to continue.

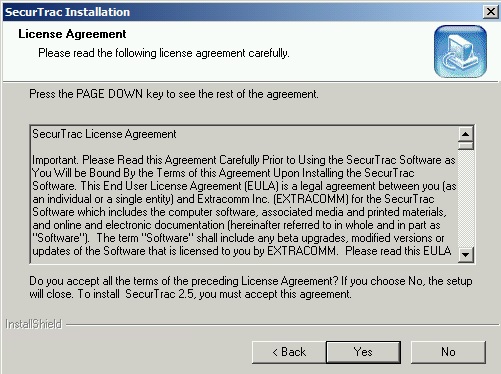

4. The SecurTrac^TM license agreement will be displayed. Be sure to read it carefully. Click the "Yes" button in order to accept the terms and conditions of the agreement and continue.

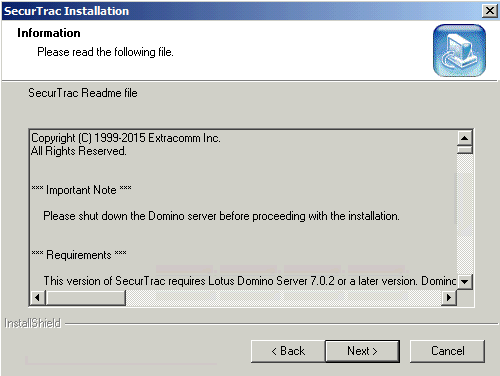

5. The installer will now display the SecurTrac^TM README file. Click the "Next" button to continue.

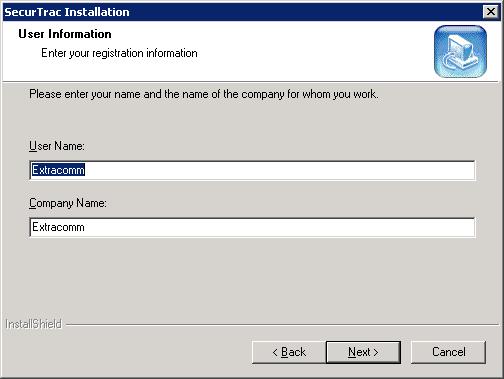

6. The installer will ask you to enter the user name and company. Type in the information and click the "Next" button to continue.


7. The installer will ask which setup type you want to install.

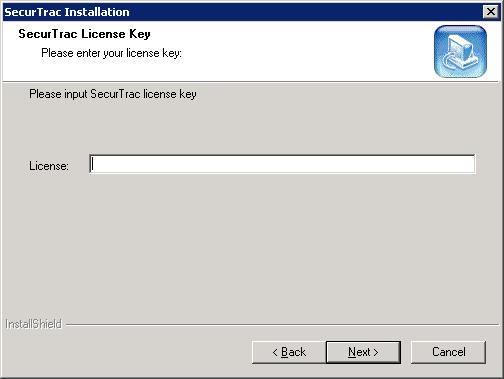

8. The installer will ask you to enter in your SecurTrac^TM license key.

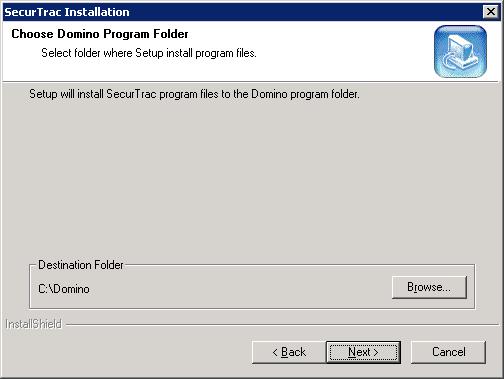

9. The installer will ask you to provide the location of the Domino program folder. After selecting the folder, click the "Next" button to continue.


10. Now choose the folder where you want to install SecurTrac^TM. We suggest that you use the default folder as the destination location. After checking the folder, click the "Next" button to continue.

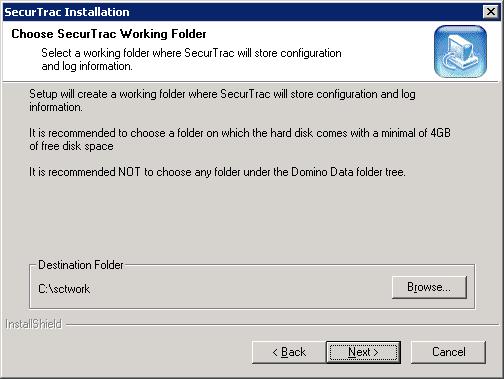

11. Specify the SecurTrac^TM working folder. It is recommended that you choose a folder on a hard disk that has at least 4 GB of disk space available. For optimal server performance select a dedicated high speed hard drive that is on a separate controller from other server hard drives.


12. The installer will modify Notes.ini file for SecurTrac^TM. You should check whether the destination folder is the one where Notes.ini is stored. After checking the folder, click the "Next" button to continue.


13. The installer will ask if you would like to install the SecurTrac plug-in program. If you choose to install the SecurTrac Plug-in, it will be installed in the following location on the Domino server: Domino\data\domino\html\SecurTracPlugin

14. The installer will ask if you want to upgrade the design of the SecurTrac Configuration (SCTCfg.nsf) and the Log database (SCTLog.nsf). Select Yes.

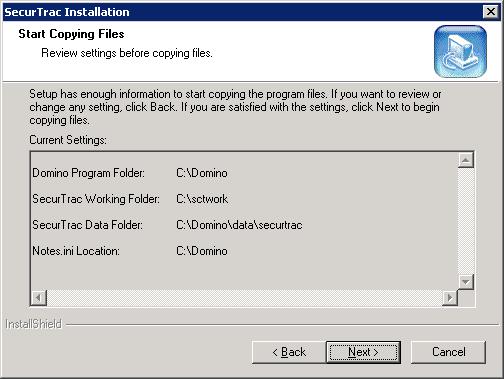

15. The installer will show the selected settings. If you are satisfied with the settings, click the "Next" button to begin copying the files.

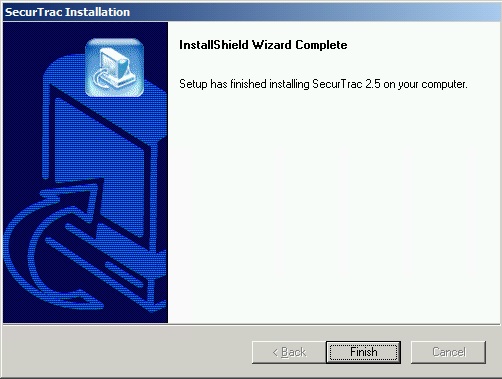

16. When the installation is complete, the 'Setup Complete' screen will appear. Click the "Finish" button to exit the Setup program.



17. After completing the setup, start the Domino server so that the SecurTrac^TM task will also start up.

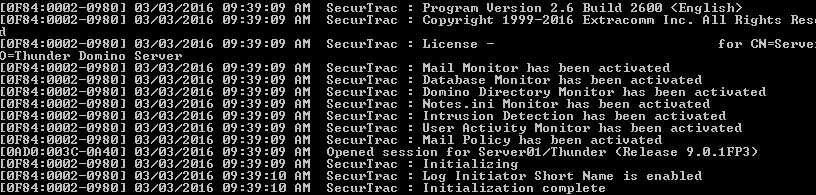

If SecurTrac^TM has been successfully installed, the following messages* will appear on Domino server console when the server starts. *Messages will not appear on Domino 9.x server



18. The SecurTrac^TM Domino server add-in task will be loaded and it will sign all SecurTrac databases with the server ID as well as also update the design of the SecurTrac configuration and Log databases with the updated template designs. Once completed, the SecurTrac^TM version and license key will be displayed.



Note: To stop the tasks associated with SecurTrac^TM or to completely uninstall it, please refer to the Appendix of this Administration Guide>> .
